Setup info
When you select a module case, the module capacity you can add is automatically calculated.
At the end of the form, a separate calculation is made according to the case capacity and number of selected modules.
If you do not add any modules from the list below and pay for the order, no package will be sent to you (because you did not choose anything we can send) and your payment will not be refunded as a result of such a transaction.
1 module : 22.5mmx45mm
2 module : 45mmx45mm
€0.01

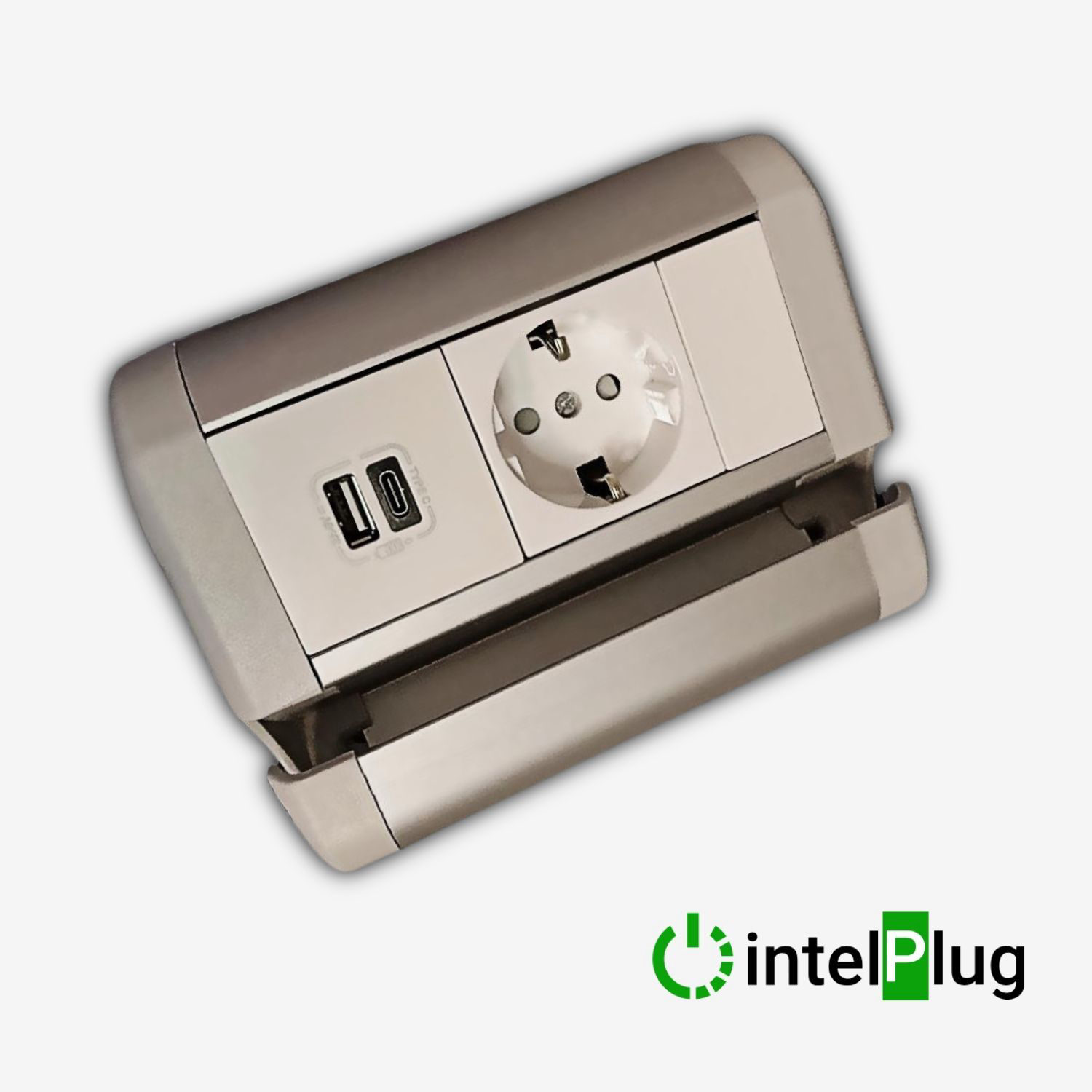

DIY Socket Module Wizard is your gateway to building custom smart energy projects with intelPlug. Whether you need to manage energy in cafes, hotels, or coworking spaces, this wizard provides all the tools you need.
Take control of your environment with Intelplug Smart Socket Modules, the ultimate solution for tech-savvy cafe and restaurant goers. These socket modules are designed to integrate seamlessly with your Intelplug system, allowing customers to activate devices directly from their tables via a simple QR code scan.
Key Features:
Benefits for Business Owners:
Easy Setup:
Product Specifications:
Enhance the customer experience and streamline your service with Intelplug Smart Socket Modules — smart technology for a smarter business.
How to use?
Fix it on the table, under the table or on the wall, or use it as a portable device with a plug.
The small size Sonoff Mini R4 Extreme or Sonoff Mini R2 fits into the socket block. The Mini R2 requires at least 2 space-covers and since it is larger than the Mini R4 Extreme, it will be harder to fit.
The side edges of the socket blocks are plastic; Put the smart relay at the very beginning or the very end of the socket block, so that you prevent the aluminum metal body from interrupting the wifi signal. .
1 socket actually 2 modules = 45mmx45mm
1 module 22.5mmx45mm Example: Spacer cover
Example configurations:
5 Modules rounded case: 1 module spacer-cover (put smart home relay on this side) + 2 module USB + 2 module Socket.
6 Modules rectangle case: 1 usb module (2 modules) + 1 socket (2 modules) + 2 pacer-cover (2 modules, put smart home relay on this side)
10 Modules rounded case: 1 module pacer-cover (put first smart relay device on this side) + 2 modules USB + 2 modules Socket + 2 modules Socket + 2 modules USB + 1 module gap (put second smart relay device on this side) In this example, 2 smart relays are used in a single socket case. You can wire the smart relays to activate 1 socket and 1 USB module. It provides easier assembly on large tables and 2 different customers can use it separately.
2 Modules single box: Plastic product that provides convenience where you need to place 1 Socket or 1 USB module.
⚠️ Caution
The installation of the modules must be done by an authorized electrician. You should get an electrical cable for the installation, we recommend using full copper, multi-stranded soft cables with a thickness of at least 2.5 mm, you should increase this thickness depending on the type of electronic device to be used.
We use FeDex [TNT] , DHL and UPS
Empower Comfort, Support Sustainability: IntelPlug Smart Socket Modules for Cafes & Restaurants
